Sunbelt Valve Body Builders

AW09G Valve Body

AW09G Valve Body

Regular price $575.00 USD
Regular price Sale price $575.00 USD
Sale Sold out
Solenoid Can Size
Cooler Location
Pressure Switches

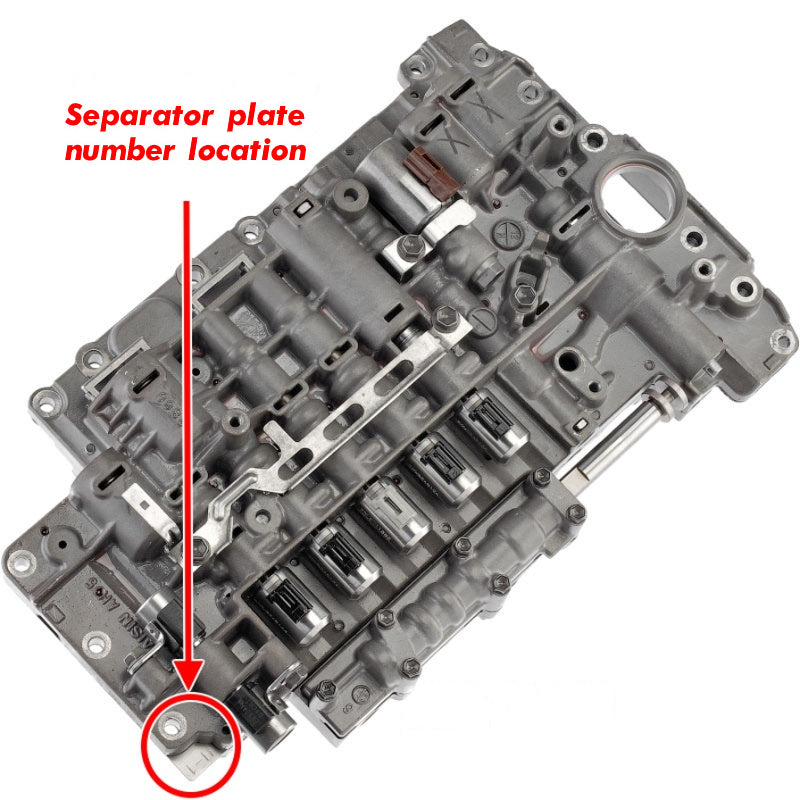

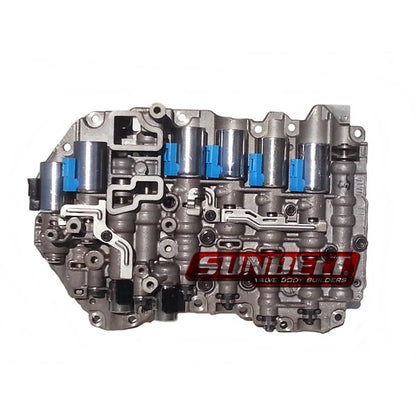

Our AWTF60SN – 09G Complete Valve Body is a precision remanufactured unit featuring NEW ROSTRA linear solenoids (without brass pressure plugs), Sonnax upgrades, and includes all necessary gaskets and sub-kit for installation. This valve body is 100% tested to ensure peak performance and reliability.


Key Features:

  • NEW ROSTRA Solenoids: Brand-new linear solenoids ensure smooth shifting.
  • Sonnax Upgrades: Enhanced components for improved durability.
  • Gaskets & Sub-kit: Comes complete with everything required for installation.
  • 100% Tested: Fully tested for reliability and performance under real-world conditions.

Accurate Valve Body Identification is Crucial

IMPORTANT: The different styles of this valve body DO NOT INTERCHANGE. Installing the incorrect valve body will result in a lack of lubrication to the gear train, leading to catastrophic transmission failure.

To ensure proper fitment, use the following identification methods:

  1. Solenoid Can Size:
    Determine if your vehicle uses large- or small-can linear solenoids.

  2. Cooler Location:
    Identify whether the cooler is mounted on the case or remotely.

  3. Pressure Switches:
    Determine if your valve body requires pressure switches.


Part Number Identification Chart

Part Number Solenoid Can Size Cooler Location Pressure Switches
SB-09G-VB-LCY Large Case Yes
SB-09G-VB-LRY Large Remote Yes
SB-09G-VB-LCN Large Case No
SB-09G-VB-LRN Large Remote No
SB-09G-VB-SCN Small Case No
SB-09G-VB-SRN Small Remote No

Linear Solenoid Can Size Identification

  • Large Solenoid Cans: 1" diameter
  • Small Solenoid Cans: 0.75" diameter

Check your valve body to identify the appropriate solenoid size.


Cooler Location

To determine the cooler location, inspect the separator plate:

  • If hole "A" is open and hole "B" is closed, the cooler is mounted on the case.
  • If hole "B" is open and hole "A" is closed, the transaxle has cooler lines & a remote cooler.

09G,TF-60SN Linear Solenoid Cooler Location


Pressure Switches

  • Models produced through June 2004 will have pressure switches.
  • Models produced beginning in July 2004 will NOT have pressure switches.

Please see the black arrows on the images for the location of these switches. Note: The switches have no relation to the cooler location.

09G, TF-60SN Pressure Switches


Fits the following Audi Applications:

  • 2006-2007 A3: L4 2.0L – 6SPD FWD
  • 2006-2007 A4: L4 2.0L – 6SPD FWD
  • 2003-2006 TT: L4 1.8L & V6 3.0L – 6SPD AWD

Fits the following Mini Cooper Applications:

  • 2006-2013 Mini Cooper: L4 1.6L – 6SPD FWD

Fits the following Volkswagen Applications:

  • 2006 Golf: L4 1.9L Diesel – 6SPD FWD
  • 2006-2007 Golf & Rabbit: L5 2.5L – 6SPD FWD
  • 2006-2007 GTI: L4 2.0L – 6SPD FWD
  • 2005-2007 Jetta (New): L4 1.9L Diesel – 6SPD FWD
  • 2005-2007 Jetta (New): L4 2.0L, L5 2.5L – 6SPD FWD
  • 2004-2007 New Beetle: L4 1.8L, 1.9L Diesel, & 2.0L – 6SPD FWD
  • 2006-2007 New Beetle: L4 2.5L – 6SPD FWD
  • 2006-2007 Passat: L4 2.0L & V6 3.6L – 6SPD FWD

Order Today for guaranteed fitment, thorough testing, and high-quality performance with prompt shipping!
