Sunbelt 4L60E Valve Body
Sunbelt 4L60E Valve Body
Couldn't load pickup availability
Improve and fix your old valve body with our new Sunbelt White Box General Motors 4L60E valve body. Every sunbelt valve body is cleaned, remanufactured, and individually quality tested by our expert team to assure that it always meets the standards of "Like New" at a lower cost to you.
After our remanufacturing process, this valve body will restore your shifting with long-lasting reliability to your Chevrolet, Buick, or GM vehicle in general. Each unit is tested to ensure it meets OEM standards, ensuring high quality performance for your transmission.
4L60E Valve Body Models:
There are over FIVE variations of the 4L60E model that will all fit different years of GM vehicles, please make sure to consult the pictures above and the information below to ensure proper vehicle fitment without damaging the transmission.

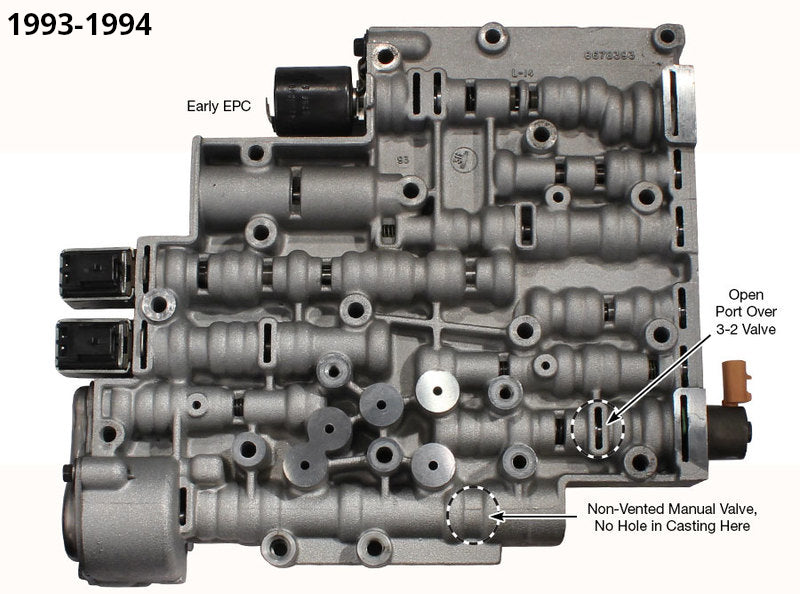

1993-1994
| Number of Valve Body Solenoids | 4 |
| EPC Solenoid | Early |
| 3-2 Control Solenoid | PWM (metal, white) 10-15 Ω |
| TCC Solenoid | None |
| Manual Valve | Non-vented |
| Casting | Bottom: Open port over 3-2 valve Bottom: No vent at manual valve |
| Part Number | GM046 |

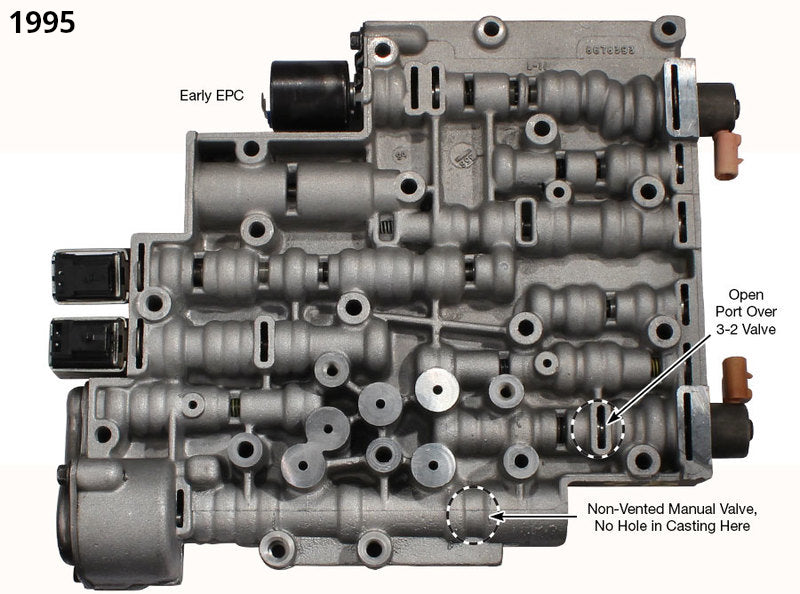

1995
| Number of Valve Body Solenoids | 5 |
| EPC Solenoid | Early |
| 3-2 Control Solenoid | PWM (metal, white) 10-15 Ω |
| TCC Solenoid | PWM (metal, white) 10-15 Ω |
| Manual Valve | Non-vented |
| Casting | Bottom: Open port over 3-2 valvet Bottom: No vent at manual valve |
| Part Number |
GM047 |

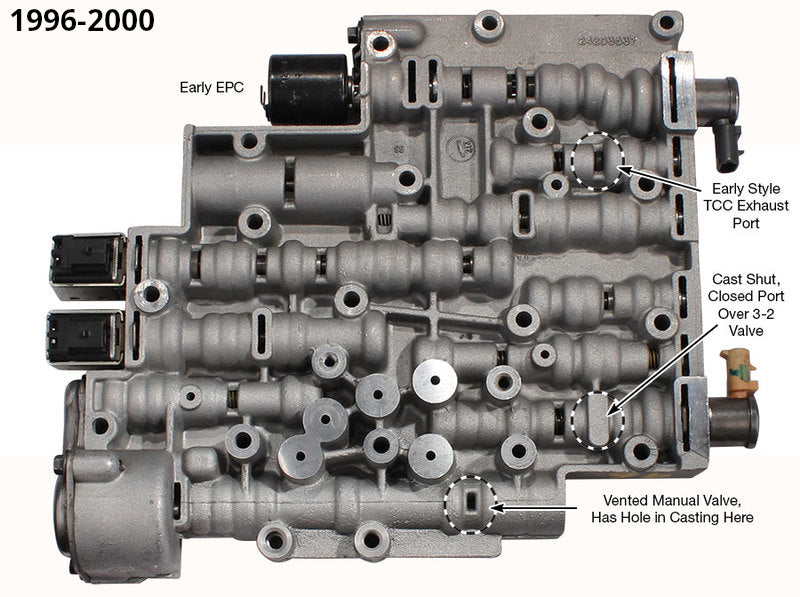

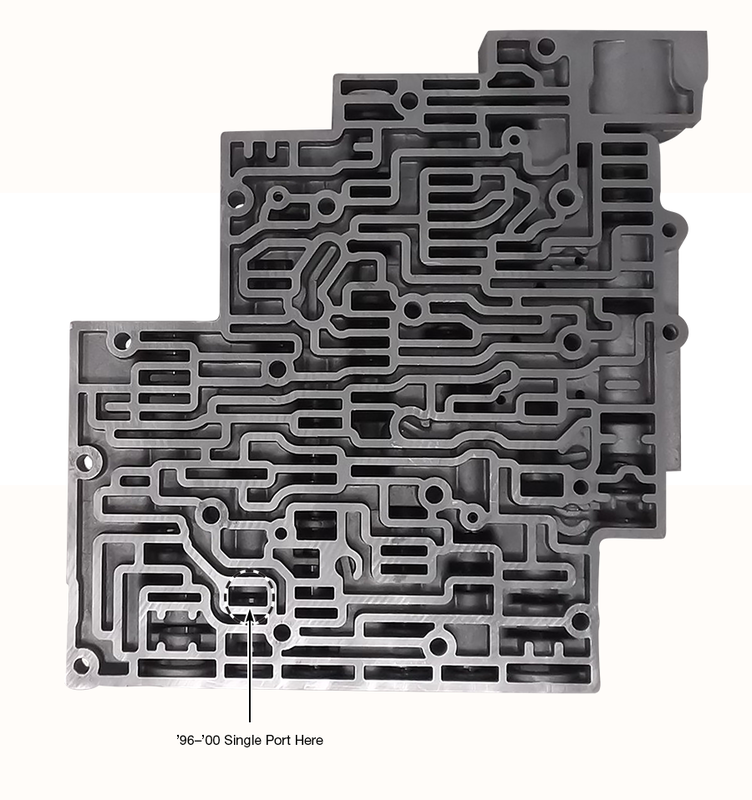

1996-2000
| Number of Valve Body Solenoids | 5 |
| EPC Solenoid | Early |
| 3-2 Control Solenoid | ON/OFF (plastic, white) 20-31 Ω |
| TCC Solenoid | PWM (plastic, gray) 10-15 Ω |
| Manual Valve | Vented |
| Casting | Bottom: 3-2 Port cast shut Bottom: Vent at manual valve |
| Part Number | GM048 |

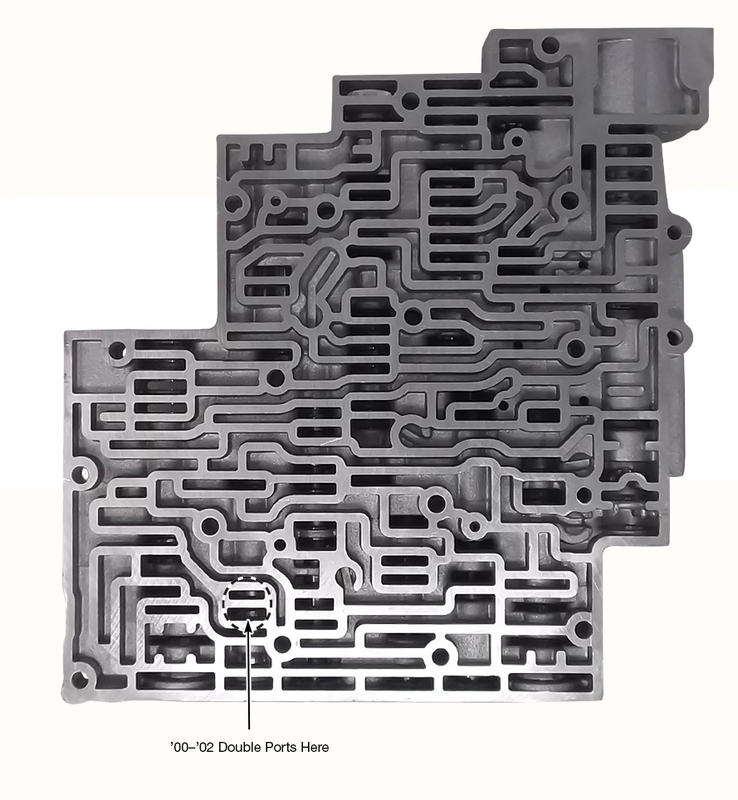

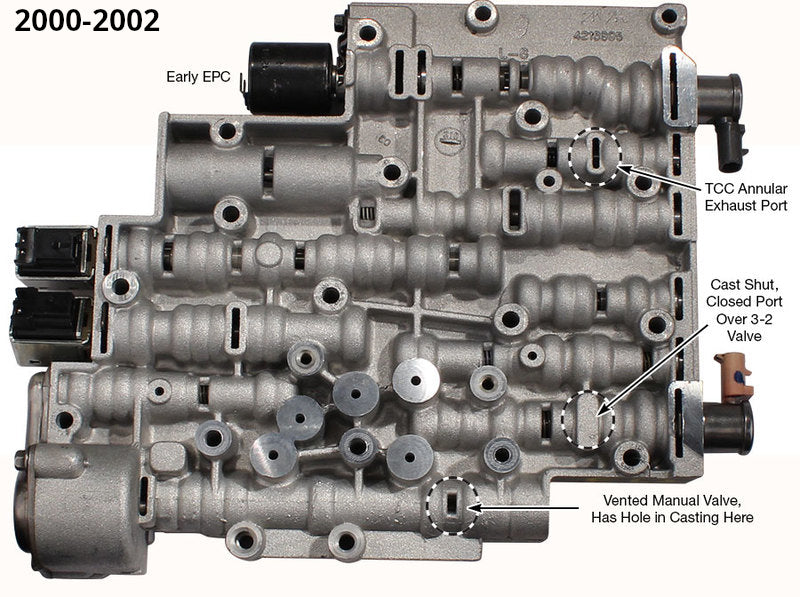

2000-2002
| Number of Valve Body Solenoids | 5 |
| EPC Solenoid | Early |
| 3-2 Control Solenoid | ON/OFF (plastic, white) 20-31 Ω |
| TCC Solenoid | PWM (plastic, gray) 10-15 Ω |
| Manual Valve | Vented |
| Casting | Bottom: TCC annular exhaust port Top: TCC annular exhaust port Bottom: 3-2 Port cast shut Bottom: Vent at manual valve |
| Part Number | GM049 |

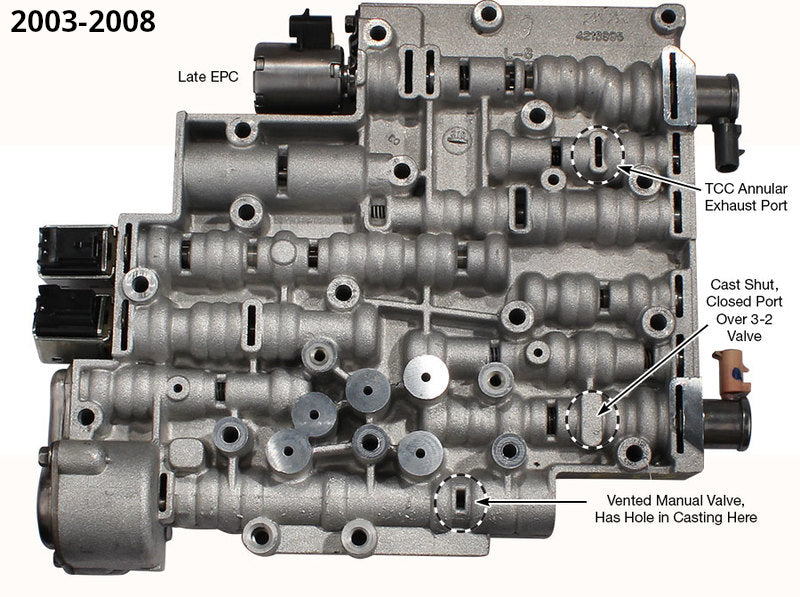

2003-2008
| Number of Valve Body Solenoids | 5 |
| EPC Solenoid | Late |
| 3-2 Control Solenoid | ON/OFF (plastic, white) 20-31 Ω |
| TCC Solenoid | PWM (plastic, gray) 10-15 Ω |
| Manual Valve | Vented |
| Casting | Bottom: TCC annular exhaust port Top: TCC annular exhaust port Bottom: 3-2 Port cast shut Bottom: Vent at manual valve |
| Part NumberG |
GM051 |
Vehicle Compatibility:
- Buick Rainier 2004–2007
- Buick Roadmaster 1994–1996
- Cadillac Escalade 1999–2006
- Cadillac Fleetwood 1994–1996
- Chevrolet Astro 1993–2005
- Chevrolet Avalanche 2002–2008
- Chevrolet S-10 Blazer 1993–2005
- Chevrolet Camaro 1994–2002
- Chevrolet Caprice 1994–1996
- Chevrolet C/K 1500/2500 (2500 with six-bolt axle pattern) 1993–1999
- Chevrolet Colorado 2004–2012
- Chevrolet Corvette 1994–2004
- Chevrolet Express 1996–2014
- Chevrolet Impala SS 1994–1996
- Chevrolet S-10 1993–2004
- Chevrolet Silverado 1500 1999–2013
- Chevrolet SSR 2003–2006
- Chevrolet Suburban 1500, 1993–2008
- Chevrolet Tahoe 1995–2010[2]
- Chevrolet Trail-Blazer 2002–2009
- Chevrolet Van 1993–1996
- GMC Canyon 2004–2012
- GMC Envoy 2003–2009
- GMC Jimmy 1993–2005
- GMC Safari 1993–2005
- GMC Savana 2003–2014
- GMC Sierra 1500/2500 (2500 with six-bolt axle pattern) 1993–2013
- GMC Sonoma 1993–2004
- GMC Suburban 1500, 1993–1999
- GMC Yukon 1992–2009
- GMC Yukon XL 1500, 2000–2008
- GMC Vandura 1993–1996
- Holden Commodore (VR, VS, VT, VX, VY, VZ, VE) 1993–2012
- Holden Monaro 2001–2006
- Holden Caprice (VR, VS, WH, WK, WL and WM) 1994–2008
- Oldsmobile Bravada
- Pontiac Firebird 1994–2002
- Pontiac GTO 2004 only
- Saab 9-7X 2005–2009
- Isuzu Ascender 2003–2008
Need Replacement Help?
If you experience any difficulty in attempting to repair or replace parts for your valve body, sign up for our Technical Support line where we can help identify your problem, and provide 20+ Years of valve body repair experience right to your car at home.
